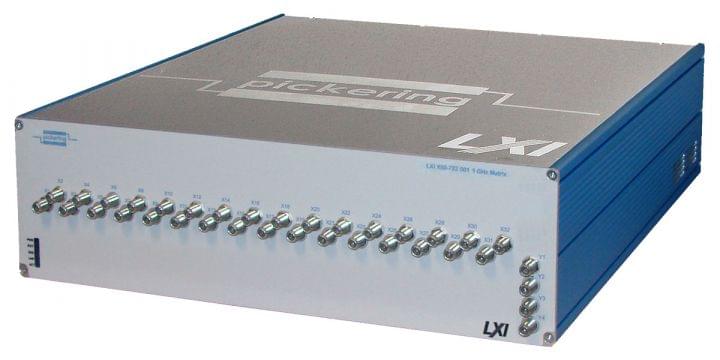

LXI 1GHz 75ohm 8x4 Matrix, terminated - 60-732-004

The 60-732 is a family of integrated RF matrices suitable for use up to 1.5GHz. The construction of the 60-732 provides a cost effective alternative for RF switching based on microwave switching elements while maintaining a high level of matrix performance. The design is fully scalable, allowing a variety of matrix sizes to be offered in a single family. The innovative design maintains a close path loss match for all routes through the matrix, minimizing the calibration effort that has to be invested by users in optimizing their test system performance.

Features
  • High Bandwidth 75 Ohm RF Matrix
  • Useable to 1.5GHz
  • Fully Integrated Design
  • Configurations To 32x4
  • Automatic Termination of Unused Inputs
  • Excellent RF Performance
  • Simple Remote Control Via LXI Interface
  • LXI Standard 1.4 Compliant
Type 75 Ohm RF Matrix - 1GHz
Platform LXI
Function Matrix
Z (Ohm) 75
X Size 8
Y Size 4
Banks 1
Max f (MHz) 1500
Brand Pickering Interfaces
