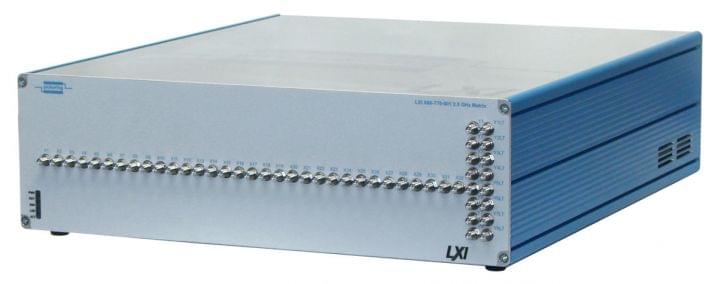

LXI 2.4GHz 50ohm 8x8 Matrix, terminated - 60-771-004
The 60-771 is a family of integrated RF matrices suitable for use up to 2.4GHz in a 50 ohm transmission line system. The matrix design permits any single Y input to be connected to any single X input, permitting the concurrent connection of 8 RF paths. All signal paths are bi-directional permitting any connection to be used as an input or an output. The 60-771 can be supplied in a variety of configurations based on Y axis sizes of x8 and X axis sizes of x8, x16, x24 and x32. Each matrix is factory reconfigurable up to the maximum size of 32x8.
|Type||50 Ohm RF Matrix - 2.4GHz|
|Max f (MHz)||2400|
