LXI Microwave Multiplexer, 50Ohm 4-Channel 12-Bank 6GHz SMA - 60-802-012
VARIANT | SELLER | PRICE | QUANTITY |
---|

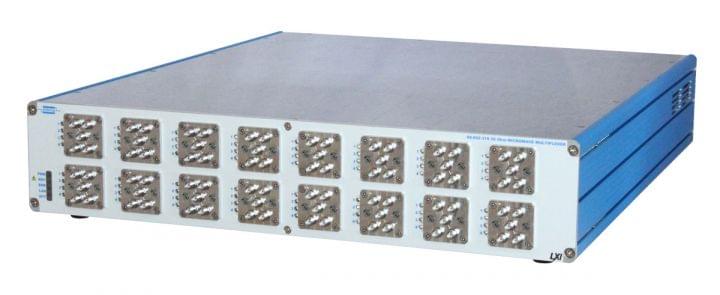

The 60-802-012 is a 4-channel, 12-bank RF multiplexer suitable for switching 50? signals up to 6GHz. It is part of Pickering Interfaces range of LXI Microwave Multiplexers which are available with bandwidths between 6GHz and 40GHz and support for 4, 8 12 or 16 banks of 4 or 6-channel multiplexers. It is ideal for constructing complex microwave switching systems for many applications. Connection is by high performance front panel mounted SMA or SMA-2.9 connectors. The 60-802 occupies just 1U (4 & 8 channel versions) or 2U (12 & 16 channel versions) of valuable rack space, providing a space saving solution for systems requiring high performance multiplexers in the construction of microwave switching systems.
Type | Microwave Multiplexer |
Platform | LXI |
Function | Mux |
Z (Ohm) | 50 |
Banks | 12 |
Max f (MHz) | 6GHz |
Channels | 4 |
Brand | Pickering Interfaces |
