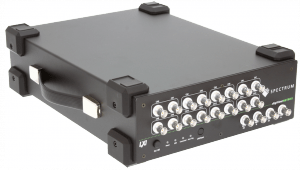

DN6.442-24 digitizerNETBOX-24 Channel,16 Bit,250 MS/s,125 MHz,12 GS Memory,LXI Digitizer
VARIANT | SELLER | PRICE | QUANTITY |
---|
The digitizerNETBOX is a remote solution that is connected by Ethernet suiting the LXI standard. The digitizerNETBOX can be used as bench-top instrument directly connected to a laptop or desktop PC or as 19" instrument connected to the company LAN and accessible from anywhere.
SBench 6 is a powerful and intuitive interactive measurement software. Besides the possibility to commence the measuring task immediately, without programming, SBench 6 combines the setup of hardware, data display, oscilloscope, transient recorder, analyzing functions and export functions under one easy-to-use interface. All current Spectrum cards are supported.
Components of the digitizerNETBOX
Brand | Spectrum Instrumentation GmbH |
Bandwidth | 125 MHz |
Resolution | 16 Bit |
Samplerate (Max) | 250 MS/s |
Memory (Max) | 12 GS |
Analog-In | 24 |
Digital-In | 3 |
Input Ranges | +/-200 mV to +/-10 V |
Impedance | 50 Ohm / 1 MOhm |
Coupling | AC/DC |
Input Type | SE |
