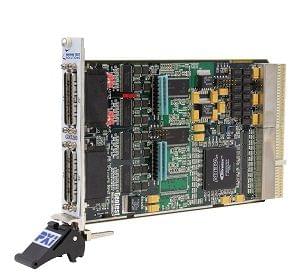

Dynamic Digital Instrument
VIGVEN offers the widest selection of PXI dynamic digital instrumentation in the industry. These modules all feature memory per pin and provide the ability to control and emulate dynamic parallel and serial digital busses. Our portfolio of 6U and 3U products offers industry leading features including PMU per pin, timing per pin, and high channel count - supporting a broad range of applications including semiconductor, board level, and LRU / system level test. When you compare features and performance, MTS’ family of dynamic digital instrumentation offers the best value, performance, and selection in the industry.

MODELVECTOR RATECHANNELSLOGIC LEVELSPER PIN PMUPER PIN EDGE PLACEMENTVECTOR DEPTHDIRECTION CONTROLREAL TIME COMPARE
3U PXI
GX5296 GX5296-H*125 MHz32 + 4 Aux32 + 4 Aux Programmable per-pin, dual-level drive and sense; -2V to +7V rangeYesYes64 Mb/ChDynamic, per ChYes
GX5295 GX5295-H*100 MHz32 + 4 AuxProgrammable per-pin, dual-level drive and sense; -2V to +7V rangeYesNo64 Mb/ChDynamic, per ChYes
GX5293200/100 MHz16/32LVTTL/CMOS/LVCMOS LVDS/LVDM/M-LVDS Prog. output level, 1.4V to 3.6VNoNo128/64 Mb/ChDynamic, per ChYes
GX5292
GX5292e(PXIe)
100 MHz32LVTTL/CMOS/LVCMOS LVDS/LVDM/M-LVDS Prog. output level, 1.4V to 3.6VNoNo64 Mb/ChDynamic, per ChYes
GX5291-50**50 MHz32TTL/LVTTL/CMOS/LVCMOS Prog. output level, 1.4V to 3.6VNoNo32 Mb/ChDynamic, per ChYes
GX5291-100**100 MHz32TTL/LVTTL/CMOS/LVCMOS Prog. output level, 1.4V to 3.6VNoNo32 Mb/ChDynamic, per ChNo
GX5283200 MHz32TTL/LVTTL/CMOS/LVCMOS LVDS/LVDM/M-LVDS Prog. output level, 1.4V to 3.6VNoNo128 Mb/ChStatic,
per Byte
No
GX5282100 MHz32TTL/LVTTL/CMOS/LVCMOS LVDS/LVDM/M-LVDS Prog. output level, 1.4V to 3.6VNoNo64 Mb/ChStatic,
per Byte
No
GX528150 MHz32TL/LVTTL/CMOS/LVCMOS Prog. output level, 1.4V to 3.6VNoNo32 Mb/ChStatic,
per Byte
No
MODELVECTOR RATECHANNELSLOGIC LEVELSPER PIN PMUPER PIN EDGE PLACEMENTVECTOR DEPTHDIRECTION CONTROLREAL TIME COMPARE
6U PXI
GX596150 MHz16 DIO, 32 static 28V I/OProgrammable per pin, dual-level drive and sense; -14V to +25VYesYes256 Kb/ChDynamic, per ChYes
GX596450 MHz32Programmable per pin, dual-level drive and sense; -14V to +25VYesYes256 Kb/ChDynamic, per ChYes
GX505550 MHz32Programmable per pin, dual-level drive and sense; -14V to +25VYesNo512 Kb/ChDynamic, per ChNo
GX505050 MHz32TTL, PECL, LVDS, & programmable (0-9 V)NoNo256K /Ch 1Mb/Ch (opt.)Dynamic, per ByteNo

Notes:
* Hybrid slot compatible, not expandable
** Not expandable
