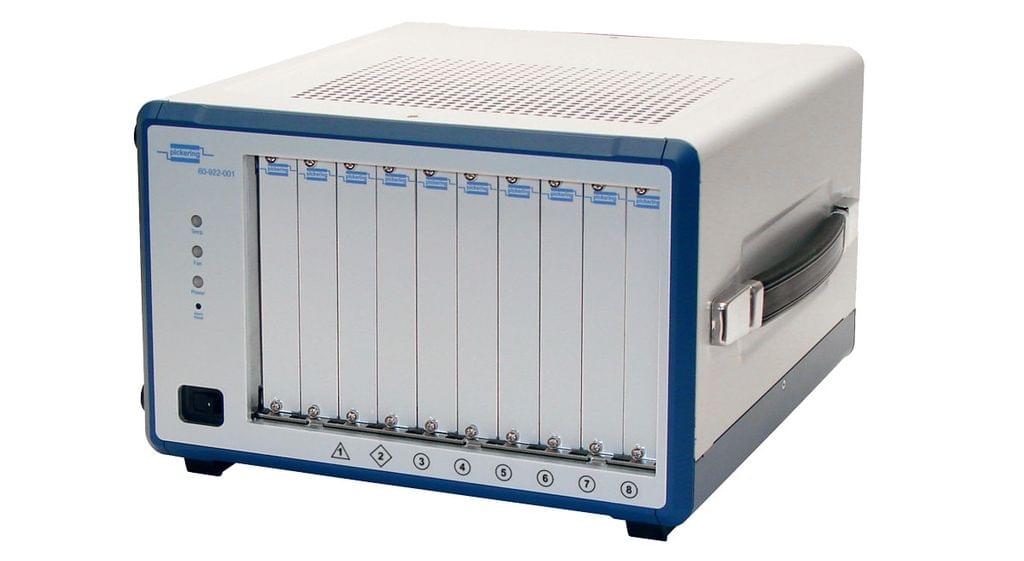

pxi-8-slot-pxi-chassis-40-922-001

Designed for applications such as office or laboratory environments where acoustic noise levels are critical.

This PXI chassis includes all the features and performance required by the PXI standard and supports a control interface or embedded controller and up to 7 more 3U peripheral modules.

This chassis is fitted with a 350W industrial grade power supply mounted at the rear of the unit with sufficient capacity to support PXI modules with very high current demands. An intelligent chassis management system monitors the power supply voltage, internal temperature and the cooling fan speed. The current condition of the chassis is displayed on front panel status LEDs and can also be monitored remotely via an RS232 port

Two 60cfm fans insure maximum cooling and an efficient direct convection design allows the chassis to operate over an extended ambient temperature range of 0ºC to +55ºC.

The system slot is compatible with any PC-PXI bridge and any 3-slot wide PXI controller

Key Features

  • High performance 8 slot PXI/cPCI backplane
  • 3 slot PXI system controller compatible
  • 350W industrial grade power supply
  • Voltage monitoring included
  • Low audible operating noise
  • Remote chassis monitoring system
  • Compact bench-top footprint
  • Low profile 4U rugged design
  • Integrated carrying handles
  • RoHS compliant
Features
  • High performance 8 slot PXI/cPCI backplane
  • 3 slot PXI system controller compatible
  • 350W industrial grade power supply
  • Voltage monitoring included
  • Low audible operating noise
  • Remote chassis monitoring system
  • Compact bench-top footprint
  • Low profile 4U rugged design
  • Optional rack mounting kit
  • Integrated carrying handles
  • RoHS compliant
Overall Size 4U Half Rack
Number of Power Supplies 1
Power Rating 350W
PXI Slots 8
Platform PXI
Brand Pickering Interfaces
