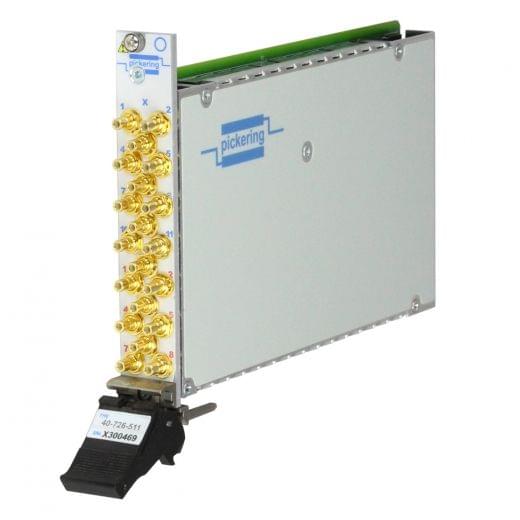

12x8 300MHz,50Ohm,SMB,PXI RF Matrix,40-726A-511
The 40-726A is a 12x8 RF Matrix Module suitable for switching frequencies up to 300MHz (50Ohm version). The 40-726A is available in either 50Ohm or 75Ohm versions with a choice of coaxial connectors. The module is designed to provide a simple and scalable bidirectional matrix for RF frequencies. Isolation Switches are located on all coaxial connectors, these disconnect the matrix from the external test fixture. This maximizes isolation and RF performance.
|Switch Type||RF Switch|
|Max f (MHz)||300|
