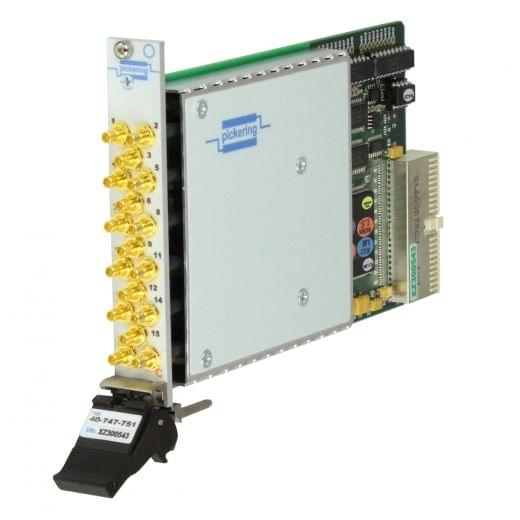

16 to 1,1GHz,50Ohm,PXI Multiplexer,SMB, 40-747-511

The 40-747 is a single 16 to 1 RF MUX available in 50 Ohm or 75 Ohm versions occupying a single PXI slot. The module is available with SMB or SMA connectors for 50 Ohm versions or, 1.0/2.3 or Mini SMB connectors for 75 Ohm versions. Applications for the 40-747 include routing high frequency signals to and from oscilloscopes, analyzers, signal generators and synthesizers, telecoms tributary switching, video/audio switching and switching high frequency logic signals.

Features
  • 16-Channel RF Multiplexer
  • 1GHz Bandwidth
  • Choice Of Coaxial Connectors
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Type RF Multiplexer
Z (Ohm) 50
Switch Type EMR
Banks 1
Poles 1
Frequency Range DC - 1GHz
Channels 16
Function Multiplexer
Brand Pickering Interfaces
