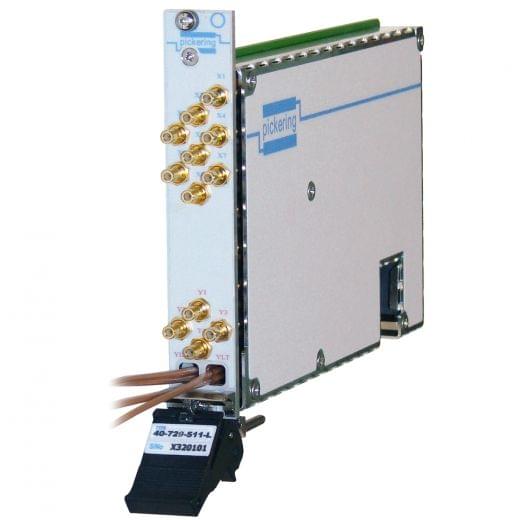

16x2 100MHz,75Ohm,SMB,PXI RF Matrix,Loop-Thru,40-728-101-L

40-727/728/729 are RF Matrix Modules suitable for switching frequencies to 300MHz (50Ohm version). The modules are available in either 50Ohm or 75Ohm versions with a choice of coaxial connectors. The 40-727/728/729 are designed designed to provide a simple and scalable bidirectional matrix to RF frequencies. They are intended for the easy construction of high performance bidirectional matrix switching systems.

Features
  • 16x4, 16x2 and 8x4 RF Coaxial Matrices
  • 300MHz Usable Bandwidth (50Ohm version)
  • 50Ohm and 75Ohm Versions Available
  • Easy To Use Loop-Thru Option To Allow Unlimited X-Axis Expansion
  • Hign Density SMB and Multiway Connector Versions
  • 75Ohm Version Suitable For Telecoms and Video Switching
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Switch Type RF Switch
Platform PXI
Z (Ohm) 75
X Size 16
Y Size 2
Max f (MHz) 100
Function Matrix
Banks 1
Brand Pickering Interfaces
