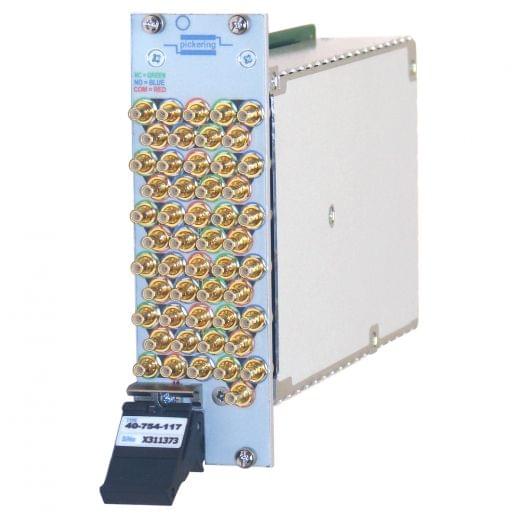

17xSPDT,DC-1.2GHz,50Ohm,SMB Connectors, PXI RF Switch, 40-754-117

The 40-754 is a 50 Ohm High Density RF switch available with 17 or 9 SPDT relays in a single PXI module. The 40-754 is available with two connector options; an SMB connector that provides a frequency range of 1.2GHz (useable to 1.8GHz) occupying two PXI slots, or an MS-M RF multiway connector which limits the bandwidth to 500MHz but offers a high density solution occupying one PXI slot. The RF switch design is identical in each case.

Features
  • 1.2GHz Switching (SMB Version)
  • 17 off SPDT or 9 off SPDT Versions
  • SMB and MS-M RF Connector Versions
  • High Performance, Low Cost
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Function Relay
Z (Ohm) 50
Switch Type EMR
Banks 1
Frequency range DC - 1.2GHz
Channels 17
Brand Pickering Interfaces
