PXI 16 x SPST Reed Relay - 40-115-021
VARIANT | SELLER | PRICE | QUANTITY |
---|

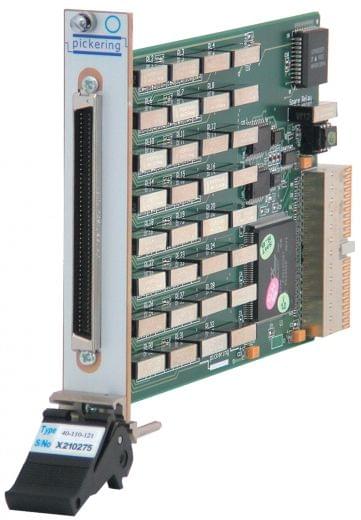

This is the 24xDPST version of our 40-110/40-115 range of reed relay switching modules which are available in both Changeover (SPDT) and Normally Open (SPST & DPST) configurations. Connections are made via a front panel 96 pin male micro-D connector. General purpose reed relays are suitable for the construction of small switching networks, for slave switching larger relays or for operating external devices (e.g. lamps, solenoids etc.). To simplify inter-relay wiring, interconnection points are built onto the circuit board thus easing the construction of complicated wiring.
Platform | PXI |
Relay Contacts | SPST |
Switch Type | Reed |
Poles | 1 |
Max I (A) | 1.2 |
Max V DC | 150 |
Relays | 16 |
Brand | Pickering Interfaces |
