PXI 16 x DPST Reed Relays - 40-115-022

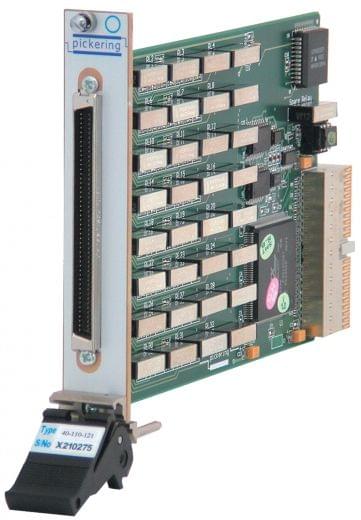

This is the 24xDPST version of our 40-110/40-115 range of reed relay switching modules which are available in both Changeover (SPDT) and Normally Open (SPST & DPST) configurations. Connections are made via a front panel 96 pin male micro-D connector. General purpose reed relays are suitable for the construction of small switching networks, for slave switching larger relays or for operating external devices (e.g. lamps, solenoids etc.). To simplify inter-relay wiring, interconnection points are built onto the circuit board thus easing the construction of complicated wiring.

  • 16, 24 or 32 Reed Relays per module
  • SPST, DPST and SPDT Configurations
  • Ruthenium Reed Relays for low level signals
  • Uses high reliability Pickering Reed Relays for maximum performance
  • Fast operating speed 250us typical
  • Switch up to 150Volts, 1.2A with 20W max power
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI chassis
  • Supported by eBIRST Switching System Test Tools
Platform PXI
Relay Contacts DPST
Switch Type Reed
Poles 2
Max I (A) 1.2
Max V DC 150
Relays 16
