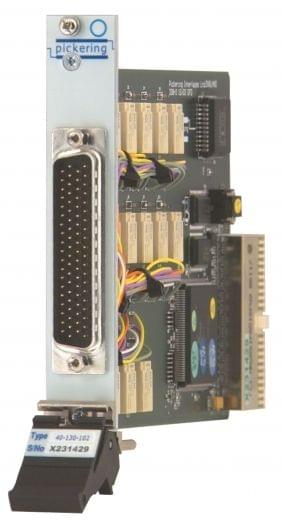

PXI 13 x DPDT Power Relays - 40-130-102

The 40-130-102 is a 13xDPDT electro-mechanical relay module and is part of our range of Medium Power Relay Modules which are suitable for applications where ordinary reed relay modules require additional current/voltage capacity. It is also available in an 8 relay version and has voltage handling up to 220VDC/125VAC and current handling to 2A. Connections are made via a front panel mounted 78 pin D-Type connector.

Features
  • 8 or 13 DPDT Electromechanical Relays Per Module
  • Switch up to 220VDC/125VAC, 2A with 60W Max Power
  • Operating Speed <3ms
  • VISA/IVI & Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Relay Contacts DPDT
Switch Type EMR
Poles 2
Max I (A) 2
Max V DC 220
Relays 13
Brand Pickering Interfaces
