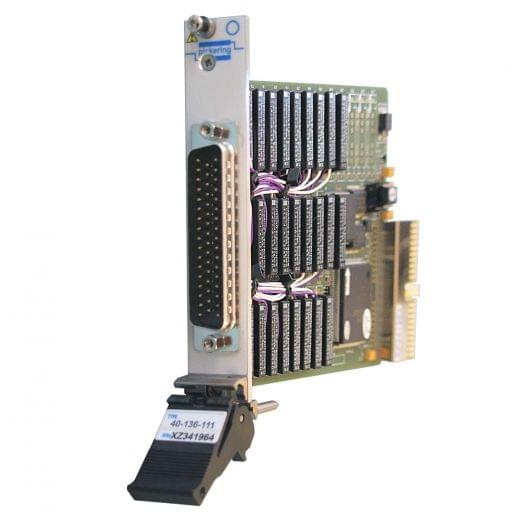

PXI 25 x SPST Reed Relay 2.5 Amp - 40-136-111

The 40-136-111 25xSPST reed relay module is part of our range of medium power, general purpose relay modules which are capable of switching voltages up to 200V and current up to 2.5A. The range includes normally open SPST and DPST configurations. Connections are made to the module via a front panel mounted 50 pin D-Type connector plug.

  • From 12 to 32 Power Reed Relays Per Module
  • SPST and DPST Configurations
  • Ruthenium Reed Relays Suitable For Low Level Signals
  • Uses High Reliability Pickering Reed Relays For Maximum Performance
  • Switch up to 200V, 1A with 2A Carry Current, 40W Max Power
  • Fast Operating Speed 250us Typical
  • VISA/IVI & Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
  • Supported by eBIRST Switching System Test Tools
Platform PXI
Relay Contacts SPST
Switch Type Reed
Poles 1
Max I (A) 2.5
Max V DC 200
Relays 25
Brand Pickering Interfaces
