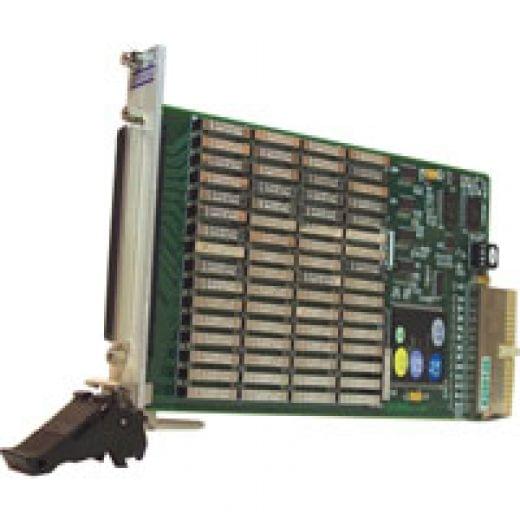

PXI 48 x SPDT Reed Relays - 40-143-121

The 40-140A/141/143 range of high density switching modules are available in Normally Open (SPST & DPST) and changeover (SPDT) configurations. Connections are made via a front panel 200 pin female connector. General purpose reed relays are suitable for the construction of small switching networks, for slaving up to larger switches or for operating external devices (e.g. lamps, solenoids etc.).

Features
  • Highest Density Reed Relay Cards in PXI
  • Up To 100 Reed Relays Per Module
  • SPST, DPST and SPDT Configurations
  • Ruthenium Reed Relays Suitable For Low Level Signals
  • Uses High Reliability Pickering Reed Relays For Maximum Performance
  • Fast Operating Speed 250us Typical
  • Switch up to 150 Volts, 1A with 20W Max Power
  • Single PCB Construction With Leaded Relays Allow Easy Maintenance
  • VISA/IVI & Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Relay Contacts SPDT
Switch Type Reed
Poles 1
Max I (A) 1
Max V DC 150
Relays 48
Brand Pickering Interfaces
