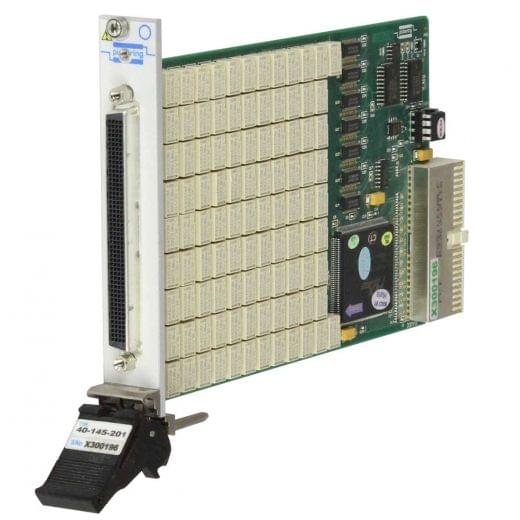

PXI 100 x Normally Closed Relay 1A 60W - 40-145-201-NC

The 40-145/46/48 range of high density switching modules are available in Normally Open (SPST & DPST) and changeover (SPDT) configurations. Connections are made via a front panel 200 pin female connector.

Features
  • SPST Choice of 50, 75, or 100 Relays Per Module
  • DPST Choice of 25, or 50 Relays Per Module
  • SPDT Choice of 32, 48, or 64 Relays Per Module
  • SPST Normally Closed, Choice of 50, 75, or 100 Relays Per Module
  • Electromechanical High Density Relays
  • Pin Compatible With 40-140 Reed Relay Modules
  • Operating Speed 3ms Typical
  • Switching up to 150V/1A/60W
  • VISA/IVI & Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Relay Contacts SPST
Switch Type EMR
Poles 1
Max I (A) 1
Max V DC 150
Relays 100
Brand Pickering Interfaces
