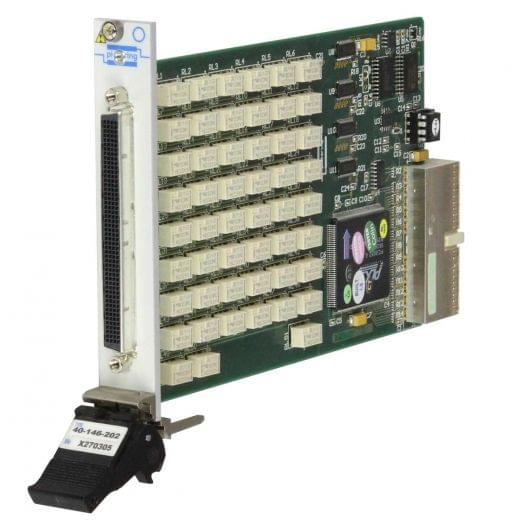

PXI 50 x DPST Electromechanical Relays - 40-146-202

The 40-145/46/48 range of high density switching modules are available in Normally Open (SPST & DPST) and changeover (SPDT) configurations. Connections are made via a front panel 200 pin female connector. General purpose relays are suitable for the construction of small switching networks, I/O port switching, for slave switching larger relays or for operating external devices (e.g. lamps, solenoids etc.).

Features
  • SPST Choice of 50, 75, or 100 Relays Per Module
  • DPST Choice of 25, or 50 Relays Per Module
  • SPDT Choice of 32, 48, or 64 Relays Per Module
  • SPST Normally Closed, Choice of 50, 75, or 100 Relays Per Module
  • Electromechanical High Density Relays
  • Pin Compatible With 40-140 Reed Relay Modules
  • Operating Speed 3ms Typical
  • Switching up to 150V/1A/60W
  • VISA/IVI & Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Relay Contacts DPST
Switch Type EMR
Poles 2
Max I (A) 1
Max V DC 150
Relays 50
Brand Pickering Interfaces
