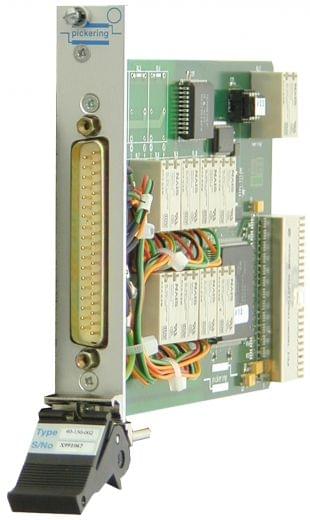

PXI 8 x DPST, 5A Power Relay Module - 40-150-002

40-150/151 modules have 8xDPST or 12xDPST power relays, suitable for switching inductive/capacitive loads up to 5A at 250VAC. 40-155/156 modules have 8xSPDT or 16xSPDT power relays and 40-157 is configured as 8xDPDT. Power relay modules are intended for switching heavy AC or DC loads or for slave switching large external relays, contactors and solenoids. The 40-150 series of power relay module are suitable for applications requiring switching of either mains voltage or DC current.

Features
  • 8 or 12 x DPST Power Relays Per Module
  • 8 or 16 x SPDT Power Relays Per Module
  • 8 DPDT Power Relays Per Module
  • Hot Switch up to 125VDC/250VAC, 5A
  • Cold Switch up to 400VDC/250VAC Peak
  • Maximum Power Handling 175W/1250VA
  • VISA/IVI & Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Relay Contacts DPST
Switch Type EMR
Poles 2
Max I (A) 5
Max V DC 400
Relays 8
Brand Pickering Interfaces
