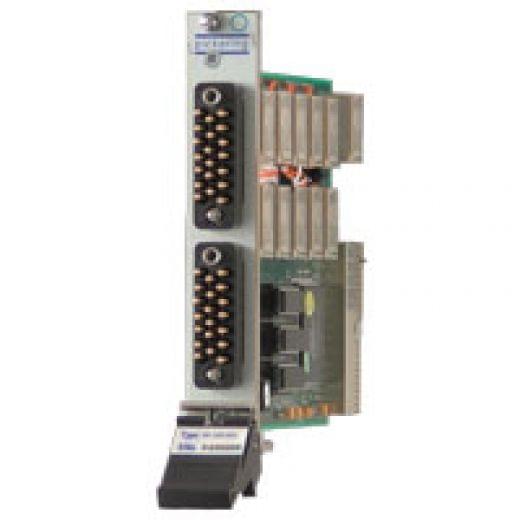

PXI 10 x DPST 8 Amp Power Relay Module - 40-160-002

The 40-160 module has a choice of 10 x SPST, 20 x SPST or 10 x DPST Power Relays, suitable for switching inductive/capacitive loads up to 10A at 250Vac. Power Relay Modules are intended for switching heavy AC or DC loads or for slaving up to large external relays, contactors and solenoids. It is suitable for applications requiring switching of either mains voltage or DC current.

Features
  • 10 x SPST, 20 x SPST & 10 x DPST Options
  • Switch up to 125VDC/250VAC
  • SPST Version - Switch 10A with 300W/2500VA Maximum Power
  • DPST Version - Switch 8A with 240W/2000VA Maximum Power
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Relay Contacts DPST
Switch Type EMR
Poles 2
Max I (A) 8
Max V DC 400
Relays 10
Brand Pickering Interfaces
