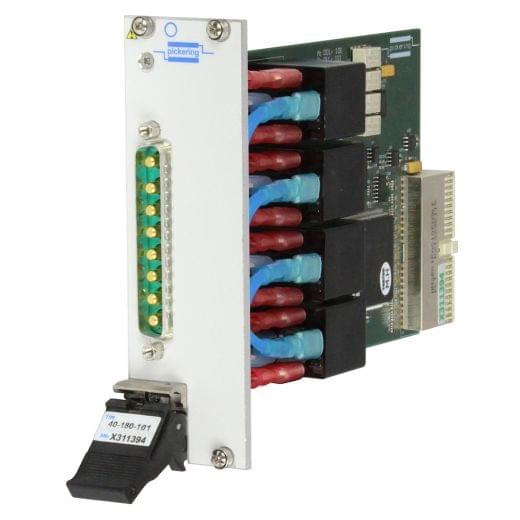

PXI 40Amp 14Volt 2xSPDT Automotive Relay - 40-181-001

Models 40-180/181 are High Power Relay Modules available with 2 SPST, 4 SPST or 2 SPDT contacts. They are capable of switching inductive/capacitive loads up to 40A at 14VDC or 20A at 28VDC. The 40-180/181 High Power Relay Modules are suitable for switching heavy loads or for slaving large external relays, contactors and solenoids. In particular these relay modules are designed for automotive test applications requiring the switching of D.C. voltage at high current. The 28V version is suitable for truck system test applications.

  • Very High Power Relay Module Available in 4xSPST, 2xSPST and 2xSPDT Formats
  • Available in 20 Amp and 40 Amp Versions
  • Capable of Switching up to 14VDC for Automotive Test Applications
  • 28VDC Version Suitable for Truck Applications
  • 2 Slot PXI Module
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Relay Contacts SPDT
Switch Type EMR
Poles 1
Max I (A) 40
Max V DC 14
Relays 2
Brand Pickering Interfaces
