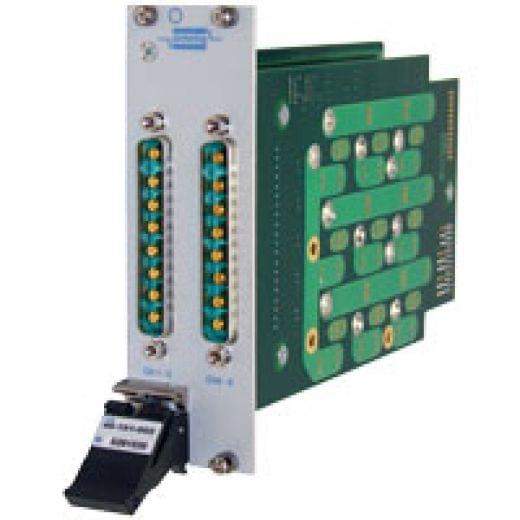

PXI 6-Channel 10A Solid State SPST Switch - 40-182-011

The 40-182 supports 6 off high current SPST switches into two PXI slots or 3 off high current SPST switches into one PXI slot. Each SPST switch uses a fully isolated solid state relay which has been designed to offer fast operation under hot switching conditions and high inrush current with no operational life degradation. Each SPST switch can support 10A of continuous current and switch up to 200V signals. The switch can sustain inrush currents in excess of 50A. AC or DC signals can be switched since the switch is polarity insensitive.

Features
  • 6 x SPST Switches in 2 PXI Slots
  • 10 Amp Rating at 200 Volts
  • Very High Hot Switch Capacity
  • Very High Inrush Current Rating
  • Fast Operating Speed and Long Service Life
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
  • Supported by eBIRST Switching System Test Tools
Platform PXI
Relay Contacts SPST
Switch Type Solid State
Poles 1
Max I (A) 10
Max V DC 200
Relays 6
Brand Pickering Interfaces
