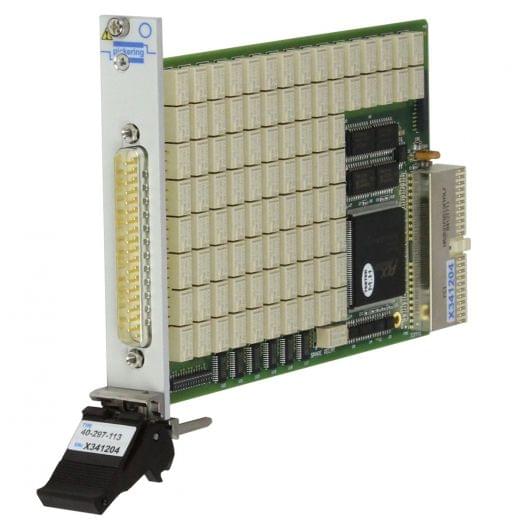

4-Ch,1.5Ohm to 6.97kOhm,0.5W,PXI Precision Resistor Module,40-297-124

This PXI Precision Resistor Module provides a simple solution for applications requiring accurate simulation of resistive sensors. The 40-297 series is available in a variety of resistance ranges and resolution capabilities that meet the needs of most functional test systems. It is particularly well suited to applications such as the testing of engine controllers where resistive sensors provide information on parameters such as temperature. The associated calibration cable for this product is available for purchase as 40-975-037-1m

Features
  • High Density Resistor Simulation
  • Up To 18 Channels in a 1-Slot Module
  • Resistance Resolution to 0.125 Ohm
  • Values From 1 Ohm to 22M Ohm
  • Short and Open Simulation
  • Simple Software Control Through Resistance Calls
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Type Precision Resistors
Platform PXI
Accuracy (%) 0.2
Resolution (Ohm) 2
Channels 4
Power Rating 0.5W
Resistance Range 1.5Ohm to 6.97kOhm
Brand Pickering Interfaces
