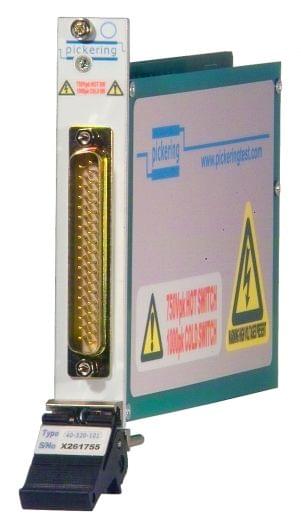

PXI 8x SPST High Voltage Reed Relays - 40-310-001

The 40-310/320 Range of High Voltage Switching Modules will hot switch up to 750V peak and cold switch up to 1000V peak in either general purpose relay (40-310) or multiplexer (40-320) configurations. These modules contain high-quality reed relays with switching ratings comfortably higher than the 40-310/320 specification. Applications for the 40-310/320 series modules include; circuit board isolation testing, relay testing, semiconductor breakdown monitoring and cable harness insulation testing.

Features
  • High voltage PXI switch modules
  • 8 or 16 x High Voltage SPST Reed Relays
  • Hot switch up to 750VDC or 750VAC peak, 10W max power
  • Cold switch up to 750VDC or 750VAC peak working voltage (1000VDC/1000VAC peak typical)
  • Dry reed switch contacts with RFI suppression for long life
  • Operating speed <0.5ms
  • VISA/IVI & Kernel drivers supplied for Windows
  • Supported by PXI or LXI chassis
Platform PXI
Relay Contacts SPST
Switch Type Reed
Poles 1
Max I (A) 0.5
Max V DC 750
Relays 8
Brand Pickering Interfaces
