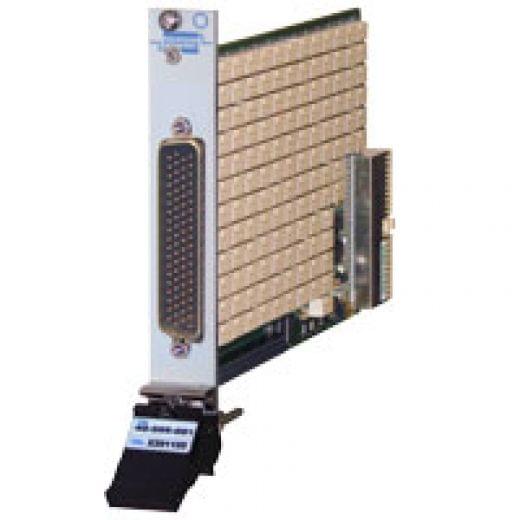

32x6,2A60W,1-Pole, PXI MatrixModule,40-506-001

The 40-505/506/507/508/509 are a range of medium density matrix modules able to switch up to 2 Amps or 300VDC/250VAC. They are constructed using high quality electro-mechanical relays for high switching confidence.

Features
  • Medium Density Matrix With 224 Crosspoints
  • 42x4, 32x6, 25x8, 18x12 and 14x16 Options
  • Maximum Current 2A Hot or Cold Switching
  • Switch up to 300VDC/250VAC and up to 60W Max Power
  • Uses Gold-Plated Contact Electro-mechanical Relays
  • VISA/IVI Drivers Supplied For Windows XP/Vista/7/8
  • Supported by PXI or LXI Chassis
  • Supported by eBIRST Switching System Test Tools
Platform PXI
Switch Type EMR
X Size 32
Y Size 6
Banks 1
Poles 1
Max I (A) 2
Max V DC 300
Brand Pickering Interfaces
