24x4,1-Pole,Switching Matrix,40-513-021

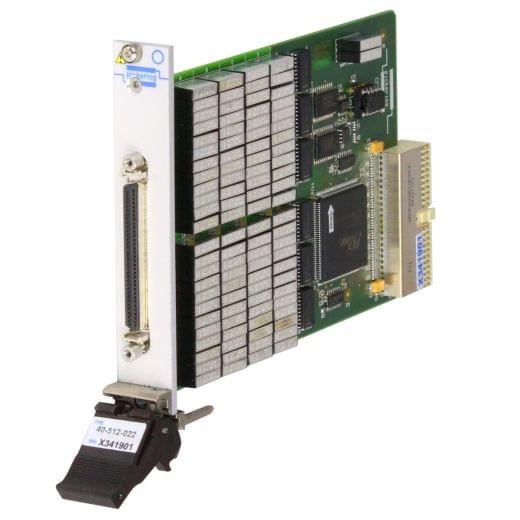

The 40-510 series of matrix modules feature a wide range of selectable switching configurations (12x4,dual 12x4,12x8 and 24x4). Typical applications include signal routing in ATE and data acquisition systems. Available reed relay formats are 1-pole, 2-pole and 1-Pole screened. The screened version is suitable for switching signals up to 50MHz. Larger matrices may be constructed by Daisy Chaining the common signals from multiple PXI modules.

Features
  • Reed Relay Matrix Card
  • 12x4,Dual 12x4, 24x4 or 12x8
  • Large matrices built using multiple modules
  • Screened 50Ohm option with 50MHz bandwidth
  • Uses high reliability Pickering ruthenium reed relays for maximum performance
  • Fast operating speed <500us
  • Switch up to 150V, 1.2A with 20W Max Power
  • Max Switch Current 1A Cold or 0.5A Hot
  • VISA, IVI and Kernel Drivers supplied for Windows
  • Supported by PXI or LXI chassis
  • Self-Test Diagnostic Tool Available (PI-MXT)
Platform PXI
Switch Type Reed
X Size 24
Y Size 4
Banks 1
Poles 1
Max I (A) 1.2
Max V DC 150
Brand Pickering Interfaces
