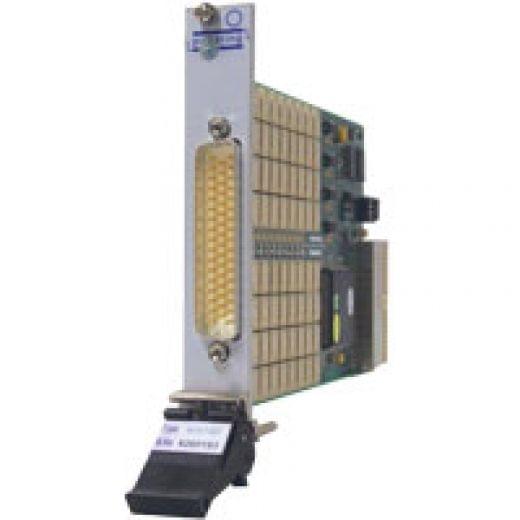

Dual8x4,2A,60W,2-Pole, PXI MatrixModule,40-515-002

This version of the 8x4 power matrix is for heavy current/low duty cycle power switching. Connections are made via a front panel 37-way D-Type male connector or two 20-way GMCT male connectors. Used for switching inductive/capacitive loads up to 5A at 250VAC. Power matrix modules are intended for switching heavy AC or DC loads or for slaving up to large external relays, contactors and solenoids. Used for applications requiring switching of either mains voltage or direct current.

Features
  • 2-Pole Switch Matrix
  • Available in 8x8, 16x4 or Dual 8x4 Formats
  • Maximum Current 2A Hot or Cold Switching
  • Switch up to 300VDC/250VAC and up to 60W Max Power
  • Uses Gold-Plated Contact Electromechanical 2-Pole Relays
  • Operating Speed Less Than 3ms
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
  • Supported by eBIRST Switching System Test Tools
Platform PXI
Switch Type EMR
X Size 8
Y Size 4
Banks 2
Poles 2
Max I (A) 2
Max V DC 300
Brand Pickering Interfaces
