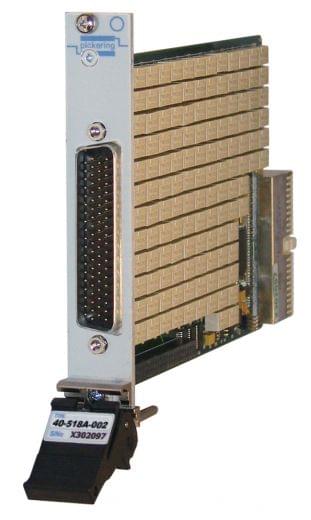

16x8,2A,2-Pole,PXI Matrix,40-518A-002

These modules are designed for switching medium voltage/power signals in test applications where reed relays do not have sufficient rating. They are also suitable for telecoms applications where send and return signals need to be switched simultaneously.

Features
  • High-Density Single-Slot 3U PXI 2A Matrices With 128 Crosspoints
  • 2-Pole 32x4 and 16x8 Options
  • Maximum Current 2A Hot or Cold Switching
  • Switch up to 300VDC/250VAC and up to 60W Max Power
  • Uses Gold-Plated Contact Electro-mechanical 2-Pole Relays
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
  • Supported by our Diagnostic Test Tools
Platform PXI
Switch Type EMR
X Size 16
Y Size 8
Banks 1
Poles 2
Max I (A) 2
Max V DC 300
Brand Pickering Interfaces
