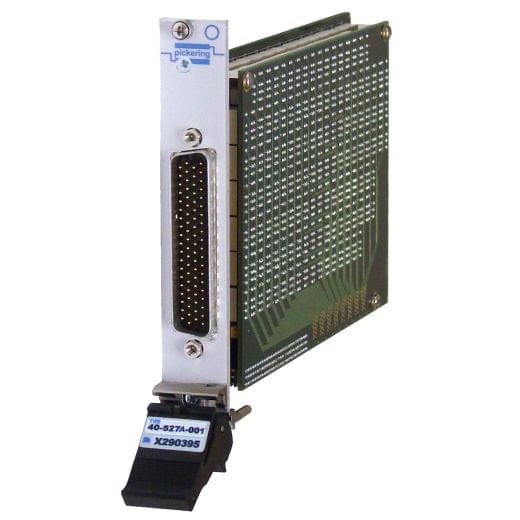

64x2,1-Pole,2A 60W PXI MatrixModule,40-527A-001

The 40-527A, is a PXI single-pole 64x2 matrix and is part of a range of matrices supporting 128 crosspoints. All models use gold-plated contact electromechanical relays. The modules are designed for switching medium voltage and power signals. The user signal connection is via a robust 78, 50 or 37 pin D-Type connector that is fully supported by the wide range of Pickering Interfaces cable and connector accessories.

  • High-Density Single-Slot 3U PXI 2-Pole Matrix With 256 Crosspoints
  • 64x2, 32x4 and 16x8 Options
  • Maximum Current 2A Hot or Cold Switching
  • Switch up to 150VDC/100VAC and up to 60W Max Power
  • Uses Gold Plated Contact Electro-mechanical 2-Pole Relays
  • VISA, IVI & Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
  • Supported by our Diagnostic Test Tools
Platform PXI
Switch Type EMR
X Size 64
Y Size 2
Banks 1
Poles 1
Max I (A) 2
Max V DC 300
Brand Pickering Interfaces
