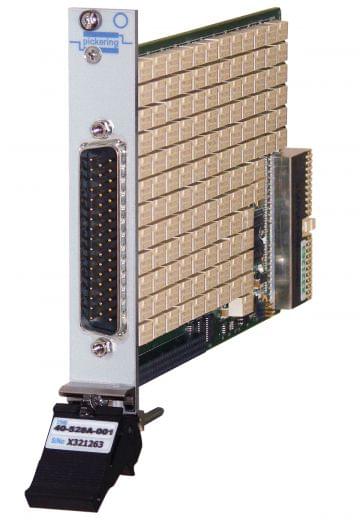

XI single pole matrices each supporting 128 crosspoints. All models use electromechanical relays. The modules are designed for switching medium voltage and power signals. The user signal connection is via a robust 78, 50 or 37 pin D-Type connector.

Features
  • 64x2, 32x4 and 16x8 Options
  • Maximum Current 2A Hot or Cold Switching
  • Switch up to 300VDC/250VAC and up to 60W Max Power
  • Uses Gold-Plated Contact Electro-mechanical 1-Pole Relays
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
  • Supported by our Diagnostic Test Tools
Platform PXI
Switch Type EMR
X Size 32
Y Size 4
Banks 1
Poles 1
Max I (A) 2
Max V DC 300
Brand Pickering Interfaces
