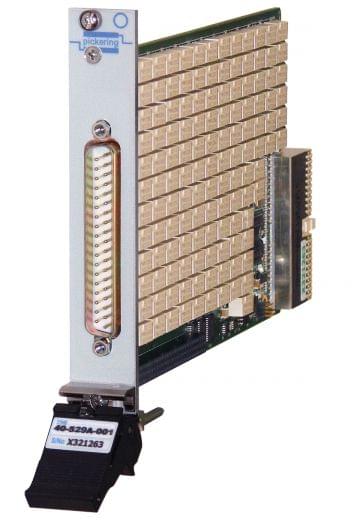

16x8,2A,60W,1-Pole,PXI MatrixModule,40-529A-001

XI single pole matrices each supporting 128 crosspoints. All models use electromechanical relays. The modules are designed for switching medium voltage and power signals. The user signal connection is via a robust 78, 50 or 37 pin D-Type connector.

  • High-Density Single Slot 3U PXI Matrix
  • 64x2, 32x4 and 16x8 Options
  • Maximum Current 2A Hot or Cold Switching
  • Switch up to 300VDC/250VAC and up to 60W Max Power
  • Uses Gold-Plated Contact Electro-mechanical 1-Pole Relays
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
  • Supported by our Diagnostic Test Tools
Platform PXI
Switch Type EMR
X Size 16
Y Size 8
Banks 1
Poles 1
Max I (A) 2
Max V DC 300
Brand Pickering Interfaces
