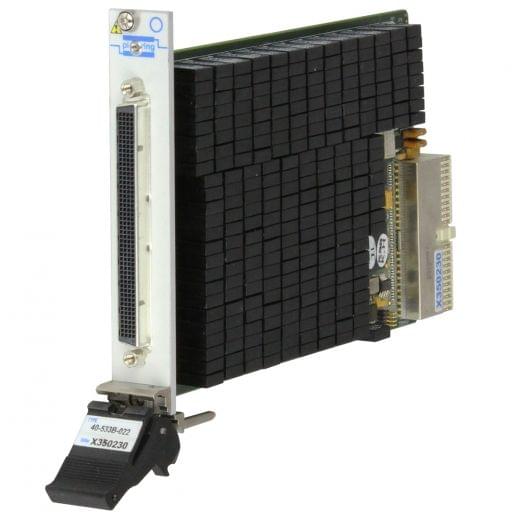

64x4,2-Pole, PXI Ultra High Density Matrix,40-533B-022

The 40-533B-022 is a 64x4 2-pole ultra high density matrix module . Other configurations are 64x4 1-pole and 64x2 1 or 2-pole reed relay formats. Typical applications include signal routing in Functional ATE and data acquisition systems. These PXI matrix modules are constructed using high reliability sputtered Ruthenium reed relays, offering >109 operations to give maximum switching confidence with long life and stable contact resistance. Larger matrices may be constructed by daisy chaining the common signals from multiplemodules. However, for applications that require a very large matrix, Pickering s BRIC modules are best suited.

Features
  • Ultra High Density Reed Relay Matrix with up to 256 Crosspoints
  • Configured as a 64x4 or 64x2 Matrix
  • 1-Pole and 2-Pole Versions
  • Uses high reliability Pickering ruthenium reed relays for maximum performance
  • 0.5ms Typical Operating Speed
  • SwitchUp To 1A,150VDC/100VAC With 15W Max Power
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI chassis
  • Supported by our Diagnostic Test Tools
Platform PXI
Switch Type Reed
X Size 64
Y Size 4
Banks 1
Poles 2
Max I (A) 1
Max V DC 150
Brand Pickering Interfaces
