Single55x8,1-Pole,Switching Matrix,40-538-021

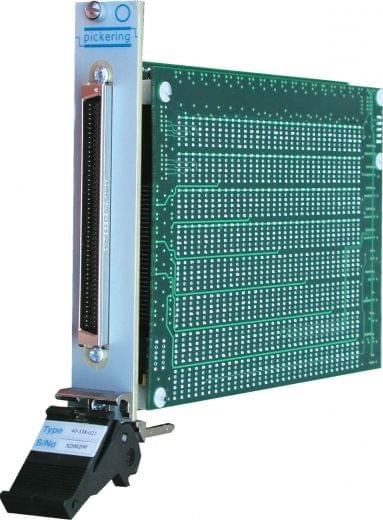

Model 40-538-021 is a very high density single 1-pole 55x8 matrix module. Typical applications include signal routing in Functional ATE and data acquisition systems. These PXI matrix modules are constructed using high reliability Sputtered Ruthenium Reed Relays, offering 109 operations to give maximum switching confidence with long life and stable contact resistance. Larger matrices may be constructed bytructed by daisy chaining the common signals from multiple modules. However, for applications that require a very large matrix, Pickering s BRIC modules are best suited.

Features
  • Ultra High Density Reed Relay Matrix Modules With 440 Crosspoints
  • 1-Slot PXI (CompactPCI) Card
  • 1-Pole or Screened Versions
  • Large Matrices Built Using Multiple Cards
  • Uses High Reliability Pickering Ruthenium Reed Relays For Maximum Performance
  • Fast Operating Speed <1000us
  • Switch up to 150V with 10W Max Power
  • Max Switch Current 0.5A
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported By PXI or LXI Chassis
  • Diagnostic Tool Available (PI-MXT)
Platform PXI
Switch Type Reed
X Size 55
Y Size 8
Banks 1
Poles 1
Max I (A) 0.5
Max V DC 150
Brand Pickering Interfaces

No Review
