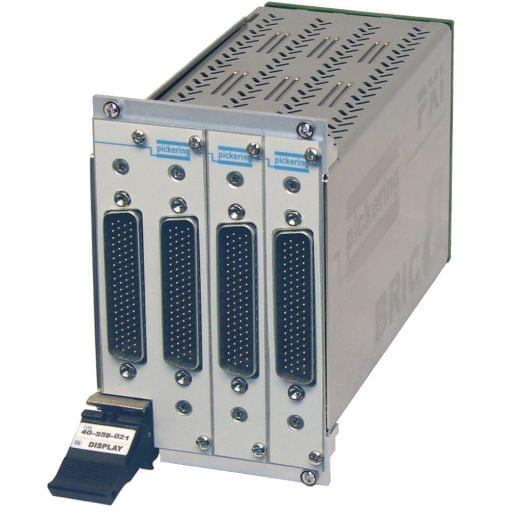

384x4,1-Pole,4-Slot BRIC,PXI Matrix(3sub-cards),40-559-401-384x4
This range of BRIC ultra-high-density large PXI matrices are available in 2, 4 or 8-slot PXI sizes to suit all high-performance matrix requirements and are constructed using Pickering Electronics' 4mm x 4mm instrumentation quality reed relays. With their high level of switching density, these PXI matrices allow a complete Functional ATE system to be housed in a single 3U PXI chassis and allow the use of much lower cost 8 or 14-slot chassis. The 40-559 matrices can be used in many industries; typical applications include automotive ECU and semiconductor package testing. Dual analog bussing for the narrower matrix options, enable completely separate matrices within a single module for parallel testing.
|Max I (A)||1.2|
|Max V DC||70|
