552x8,1-Pole,DualAnalogBus8-Slot BRIC(12sub-cards),40-560A-121-552X8-M

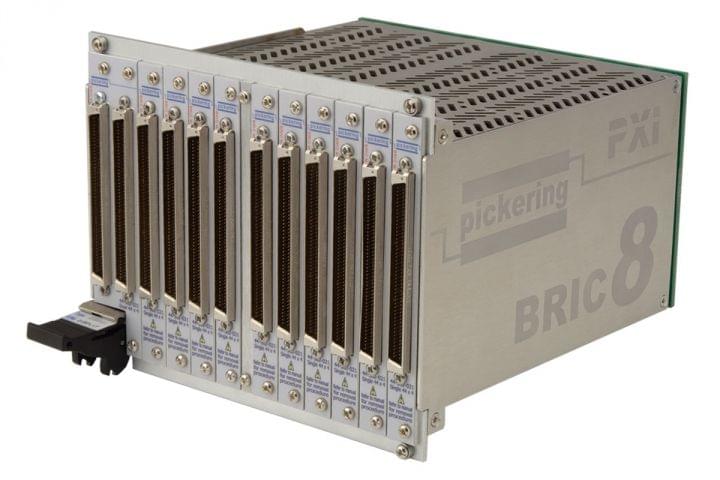

This version of our BRIC is part of a range of high-density PXI matrix modules. These modules are available in 2, 4 or 8 slot PXI sizes to suit all high-performance matrix requirements and are constructed using instrumentation quality reed relays. With this high level of switching density, these PXI matrix modules allow a complete Functional ATE system to be housed in a single 3U PXI chassis. These BRIC matrix modules allow the use of lower cost 8 or 14-slot PXI chassis.

  • Integrated PXI Matrix Module with Built-in High-Performance Screened Analog Bus
  • Available as 2, 4, and 8 Slot 3U PXI Modules
  • 1-Pole Switching
  • Switch up to 150Volts, 0.5A, 10W
  • Automatic Isolation Switching Maximizes Bandwidth and Matrix Reliability
  • Simplified Maintenance through the use of Leaded Reed Relays
  • Support in any PXI Compliant Chassis or Control through Ethernet in our LXI Modular Chassis
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by our Diagnostic Test Tools
Platform PXI
Switch Type Reed
X Size 552
Y Size 8
Banks 1
Poles 1
Max I (A) 0.5
Max V DC 150
Brand Pickering Interfaces
