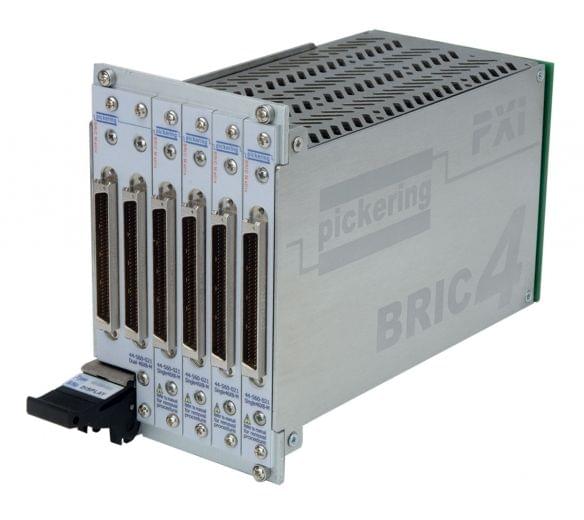

5x32,1-Pole,4-Slot PXI(1sub-card),40-562A-021-5X32

This version of our BRIC is part of a range of high-density PXI matrix modules. These modules are available in 2, 4 or 8-slot PXI sizes to suit all high performance matrix requirements and are constructed using instrumentation quality reed relays. With this high level of switching density, these PXI matrix modules allow a complete Functional ATE system to be housed in a single 3U PXI chassis. These BRIC matrix modules allow the use of lower cost 8 or 14-slot PXI chassis.

Features
  • 1Amp Large PXI Matrices with 2x the Density of Competing Products
  • Integrated Module with Built-In High Performance Screened Analog Bus
  • Available as 2, 4 and 8-Slot 3U PXI Modules
  • 1-Pole or 2-Pole Switching
  • Switch up to 150Volts, 1A, 20W
  • Automatic Isolation Switching Maximizes Bandwidth and Matrix Reliability
  • Simplified Maintenance through the use of Leaded Reed Relays
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by our Diagnostic Test Tools
  • Support in any PXI Compliant Chassis or Control through Ethernet in our LXI Modular Chassis
Platform PXI
Switch Type Reed
X Size 5
Y Size 32
Banks 1
Poles 1
Max I (A) 1.2
Max V DC 150
Brand Pickering Interfaces
