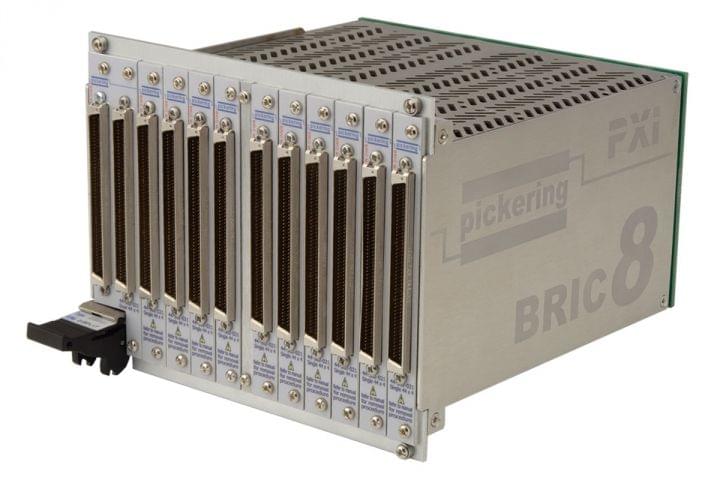

88x8,1-Pole,8-Slot BRIC(4sub-cards),40-562A-121-88X8
VARIANT | SELLER | PRICE | QUANTITY |
---|
This version of our BRIC is part of a range of high-density PXI matrix modules. These modules are available in 2, 4 or 8 slot PXI sizes to suit all high-performance matrix requirements and are constructed using instrumentation quality reed relays. With this high level of switching density, these PXI matrix modules allow a complete Functional ATE system to be housed in a single 3U PXI chassis. These BRIC matrix modules allow the use of lower cost 8 or 14-slot PXI chassis.
Platform | PXI |
Switch Type | Reed |
X Size | 88 |
Y Size | 8 |
Banks | 1 |
Poles | 1 |
Max I (A) | 1.2 |
Max V DC | 150 |
Brand | Pickering Interfaces |
