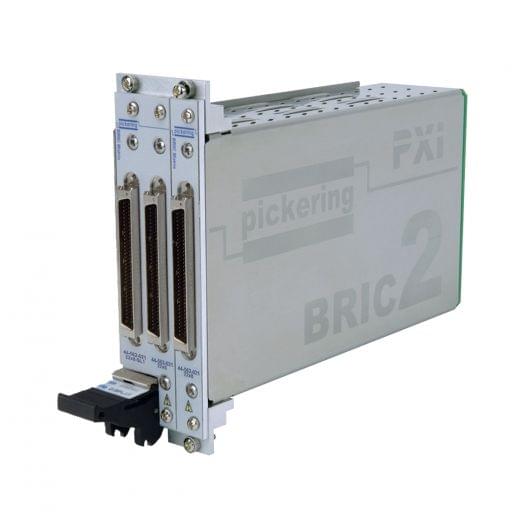

10x32,1-Pole,2-Slot BRIC(2sub-cards),40-562A-221-10X32

This version of our BRIC is part of a range of high-density PXI matrix modules. These modules are available in 2, 4 or 8-slot PXI sizes to suit all high performance matrix requirements and are constructed using instrumentation quality reed relays. With this high level of switching density, these PXI matrix modules allow a complete Functional ATE system to be housed in a single 3U PXI chassis. These BRIC matrix modules allow the use of lower cost 8 or 14-slot PXI chassis.

Features
  • 1Amp Large PXI Matrices with 2x the Density of Competing Products
  • Integrated Module with Built-In High Performance Screened Analog Bus
  • Robust 1Amp/20W Switching, With up to 4,096 Crosspoints per Module
  • Automatic Isolation Relay Switching Maximizes Bandwidth and Matrix Reliability
  • Pickering Ruthenium Reed Relays for Maximum Performance
  • Dual Analog Bus Options for Dual Matrix Flexibility within a Single Module
  • Available as 2, 4 and 8-Slot 3U PXI Modules
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by our Diagnostic Test Tools
Platform PXI
Switch Type Reed
X Size 10
Y Size 32
Banks 1
Poles 1
Max I (A) 1.2
Max V DC 150
Brand Pickering Interfaces
