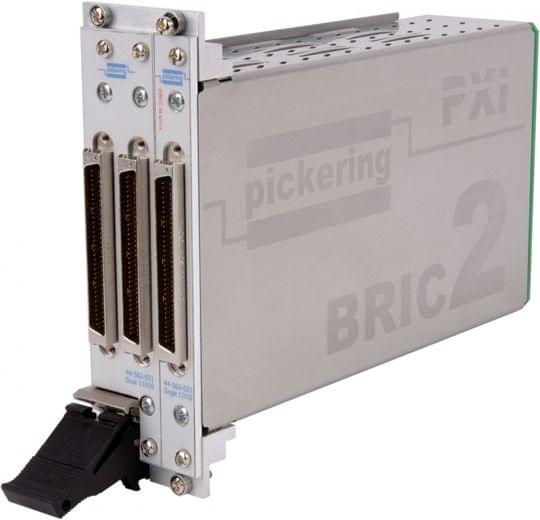

96x8,1-Pole,2-Slot BRIC,PXI Solid State(3sub-cards),40-563A-221-96X8

This version of our BRIC is part of a range of high-density PXI matrix modules. These modules are available in 2, 4 or 8-slot PXI sizes to suit all high performance PXI matrix requirements and are constructed using solid-state switches. With this high level of switching density, these PXI matrix modules allow a complete Functional ATE system to be housed in a single 3U PXI chassis. These BRIC matrix modules allow the use of lower cost 8 or 14-slot PXI chassis.

Features
  • Integrated PXI Matrix Module with Built-in High Performance Screened Analog Bus
  • Available as 2, 4 and 8-Slot 3U PXI Modules
  • Solid State 1-Pole Matrix with Sizes Between 64x8 and 384x8
  • Low Thermal EMF
  • Fast Switch Operation and Long Service Life
  • Switch up to 40 Volts, 0.25A Continuous Current
  • Automatic Analog Bus Isolation Switching Gives Maximum Bandwidth
  • Supported by PXI or LXI Chassis
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by our Diagnostic Test Tools
Platform PXI
Switch Type Solid State
X Size 96
Y Size 8
Banks 1
Poles 1
Max I (A) 0.25
Max V DC 40
Brand Pickering Interfaces
