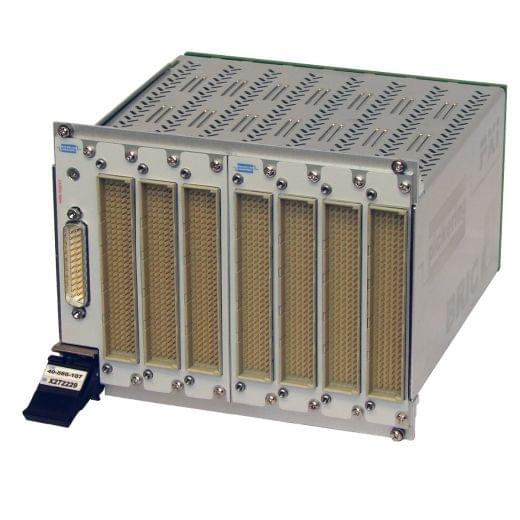

330x4,2A,2-Pole,8-Slot BRIC,PXI Matrix,40-566A-106

These modules are 2 Amp high-density large PXI matrix modules with the ability to switch up to 2 Amps at 150VDC/100VAC. They are available in 4 or 8-slot PXI sizes and are constructed using quality electro-mechanical relays for high switching confidence. Typical applications include signal routing for Functional ATE systems. With this high level of switching density, these PXI matrix modules allow a complete Functional ATE system to be housed in a single 3U PXI chassis. Our BRIC modules allow the use of much lower cost 8 or 14-slot PXI chassis: BRIC4 is a 4-slot PXI Module; can hold up to four matrix daughter cards, 928 crosspoints (up to 116x8 2-pole). BRIC8 is an 8-slot PXI Module; can hold up to eight matrix daughter cards, 1856 crosspoints (up to 232x8 2-pole).

Features
  • Integrated 2 Amp PXI Matrix Module with Built-in High-Performance Screened Analog Bus
  • Fully Scalable Matrix Solution
  • Maximum Current 2A Hot or Cold Switching 2-Pole Switching up to 150VDC/100VAC and up to 60W Max Power
  • Partially Populated Versions Available
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
  • Supported by our Diagnostic Test Tools
Platform PXI
Switch Type EMR
X Size 330
Y Size 4
Banks 1
Poles 2
Max I (A) 2
Max V DC 150
Brand Pickering Interfaces
