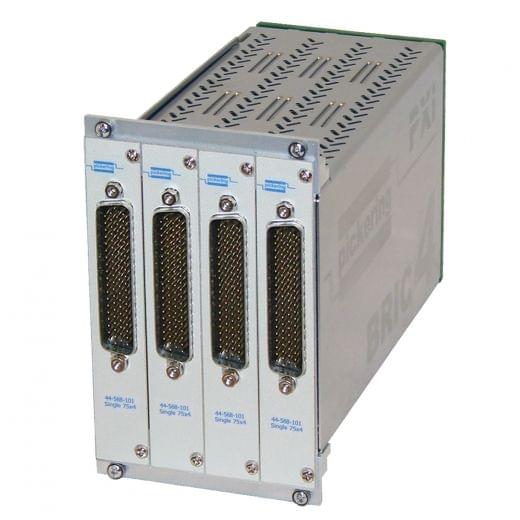

150x4,2A,1-Pole,4-Slot BRIC,PXI Matrix,40-568-002

The 40-568 PXI Matrix BRIC provides a range of high density matrix modules able to switch up to 2 Amps or 200VDC/140VAC. The 40-568 BRIC modules are available in 2, 4 or 8-slot PXI sizes to suit most high performance PXI Matrix requirements, constructed using high quality electromechanical relays for high switching confidence.

Features
  • Very High Density 2Amp Matrix With Up To 600 Crosspoints Per 2-Slot BRIC, 1200 Crosspoints Per 4-Slot BRIC & 2400 Crosspoints Per 8-Slot BRIC (300 Crosspoints Per PXI Slot)
  • Integrated PXI Matrix Module With Built In High Performance Screened Analog Bus
  • 2-Slot Configurations to 150x4 (1-Pole), 4-Slot Configurations to 300x4 (1-Pole), 8-Slot Configurations to 600x4 (1-Pole)
  • Switch up to 200VDC/140VAC, 2A, 60W
  • Automatic Analog Bus Isolation Switching Maximizes Bandwidth and Matrix Reliability
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Reduced Service and Maintenance Costs Through The Use of BIRST Diagnostics
  • Supported by eBIRST Switching System Test Tools
Platform PXI
Switch Type EMR
X Size 150
Y Size 4
Banks 1
Poles 1
Max I (A) 2
Max V DC 200
Brand Pickering Interfaces
