PXI High Density MUX BRIC, 8-Chan, 20-Pole

This range of High-Density Multiplexer is part of our BRIC family. These MUX's are designed to simplify the connection of a common set of test equipment to one of a number of different devices for testing (simultaneous multiple channel selection is also possible, without limitation).

These multiplexers are ideal for applications where the equipment needs to conduct the same test process on a series of similar devices one at a time. They are available in a variety of configurations that allow testing with differing number of devices to be tested and different connection widths to suit differing test equipment pin counts.

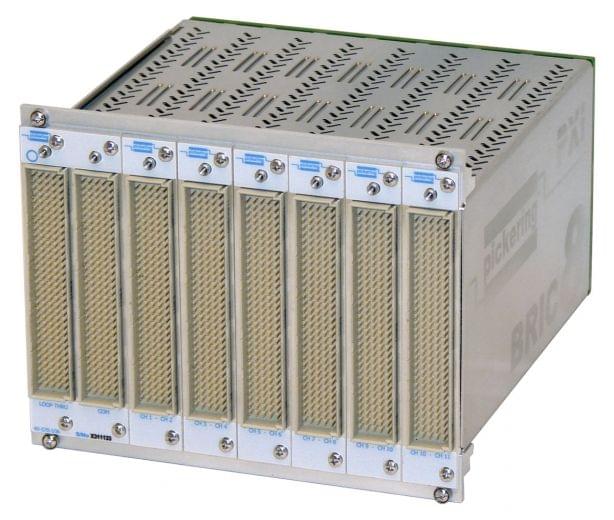

All version are supported in a BRIC8 construction that occupies eight PXI 3U mechanical slots, one of which provides the PXI interface and power.

  • High-Density Multiplexer With Multiple Configuration Options
  • Scalable (up to sic relay cards)
  • Expandable via Common Loop-Thru Connector with Isolation Switching for Optimal Signal Integrity
  • Maximum Switch Current of 1A
  • Switch up to 100V and up to 60W Max Power
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Switch Type EMR
Banks 1
Poles 20
Max I (A) 1
Max V DC 100
Channels 8
Brand Pickering Interfaces
