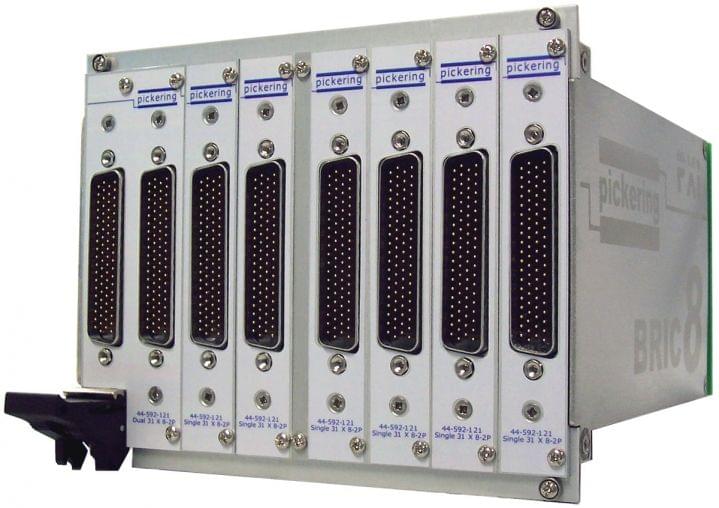

Dual 100x4 3pin BO PXI BRIC8 FIBO Matrix - 40-592A-105
VARIANT | SELLER | PRICE | QUANTITY |
---|
The 40-592A FIBO (Fault Insertion Break-Out) Matrix Module is a large-scale high density switching matrix based on the Pickering BRIC format. The fault insertion BRICs are designed for applications requiring the simulation of a variety of faults in complex, high pin count, applications involving sensors and control units. Typical faults that can be simulated are open-circuits, short circuits to ground or battery, or short-circuits between input/output lines. Typical applications are in automotive and aerospace industries which involve safety or mission critical systems that have to behave predictably when cabling or sensor faults occur.
Platform | PXI |
Switch Type | Reed |
X Size | 100 |
Y Size | 4 |
Fault Buses | 8 |
Max I (A) | 1.2 |
Max V DC | 150 |
Channels | 100 |
Brand | Pickering Interfaces |
