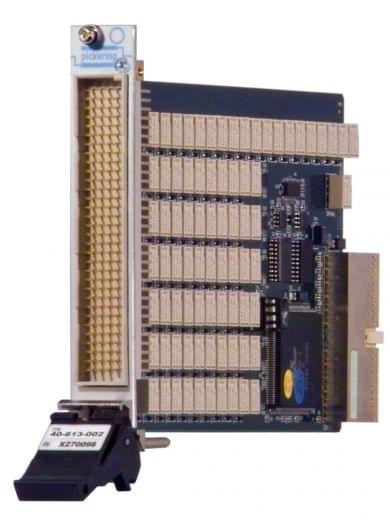

The 40-613 Very High Density Versatile 2-pole Multiplexer module features a wide range of software selectable switching configurations. It is especially useful where a number of high density multiplexers are required with the option of easily altering the channel count as a test system evolves. Typical applications include signal routing in ATE and data acquisition systems. The 40-613 module uses high quality electro-mechanical relays, connections are made via a front panel 160 pin DIN41612 connector.

The module can be software configured into one of a large number of different 2-pole multiplexer modes. Inter-bank switching relays enable the channel count to be increased to a maximum of 64.

Features
  • Versatile Multiplexer - For Now And The Future
  • Flexible Software Configured Architecture Can be Set to Different Configurations as Needs Change
  • 16-Bank 4-Channel, 2-Pole Multiplexers With Inter-bank Connection Switching
  • Many Different Configurations up to a Single 64-Channel 2-Pole Multiplexer
  • Maximum Current 2A Hot or Cold Switching
  • Switch up to 300VDC/250VAC and up to 60W Max Power
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Switch Type EMR
Banks 16
Poles 2
Max I (A) 2
Max V DC 300
Channels 4
Brand Pickering Interfaces
