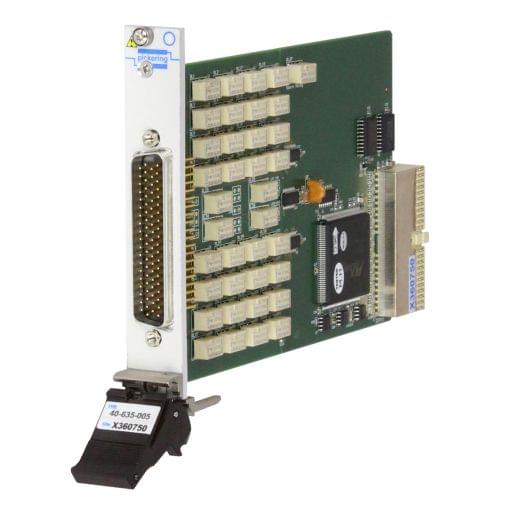

The 40-635 2 Amp Multiplexer module is available in 9 standard configurations as well as 9 half density configurations, all using high quality electro-mechanical signal relays allowing each channel to switch current up to 2A and voltage up to 300VDC/250VAC. The module is suitable for signal routing in ATE and data acquisition systems. Connections are made via a front panel 78-way D-type connector.

Features
  • 9 Standard Configurations
  • 9 Half Density Configurations
  • 2A Hot or Cold Switching
  • Switch up to 300VDC/250VAC and up to 60W Max Power
  • Simple 78-Way D-Type Connection
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Switch Type EMR
Banks 2
Poles 1
Max I (A) 2
Max V DC 300
Channels 32
Brand Pickering Interfaces
