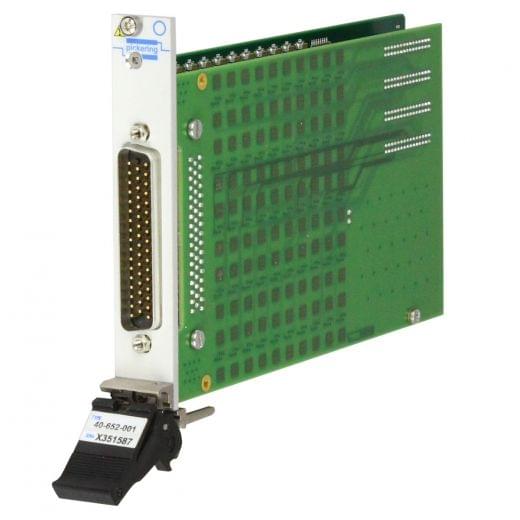

Single 24-Channel 2-Pole 5 Amp PXI Solid State Multiplexer - 40-652-003

The 40-652 range of multiplexers uses solid state relays with high tolerance to surge currents and hot switching events. Each multiplexer provides an isolation relay in the common to minimize capacitive loading when expanding the multiplexer across multiple modules. The 40-652 can sustain 30A for 300 s on hot or cold switching.

User connections are made via a 50-way D-Type connector which is fully support by our comprehensive range of cables and connector accessories.

Features
  • Long Life Solid State Design
  • 100V 5A Hot Switch Capacity
  • Surge Current of 30A for 300us
  • Single, Dual, 1-Pole & 2-Pole Configurations
  • Fast Operating Time
  • VISA, IVI & Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI chassis
  • Supported by eBIRST Switching System Test Tools
Platform PXI
Switch Type Solid State
Banks 1
Poles 2
Max I (A) 5
Max V DC 100
Channels 24
Brand Pickering Interfaces
