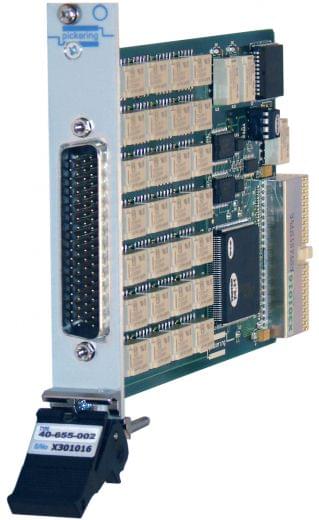

PXI 4-Channel, 7-Bank Multiplexer, 2-Pole - 40-655-002

The 40-655-002 is a multiplexer, specifically designed for switching POTS, ISDN or xDSL telephony signals, contains seven separate 4-channel multiplexers, 2-pole switching and is suitable for switching signals to 220VDC/125VAC.

The module can be configured in many additional multiplexer switching formats, for example 56-channel 1-pole, 28-channel 2-pole, etc. It also can be either factory configured or later re-configured by the user at any time to form a different multiplexer function.

Features
  • High Density Multiplexer for Telecommunication Applications
  • Seven Separate 4-Channel Multiplexers
  • Configurable to Form Other Multiplexer Sizes up to 56 Channel
  • 2-Pole Switching
  • 50MHz Typical Bandwidth
  • Operating Speed <3ms
  • Switch up to 220VDC/125VAC, 2A with 60W Max Power
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Switch Type EMR
Banks 7
Poles 2
Max I (A) 2
Max V DC 220
Channels 4
Brand Pickering Interfaces
