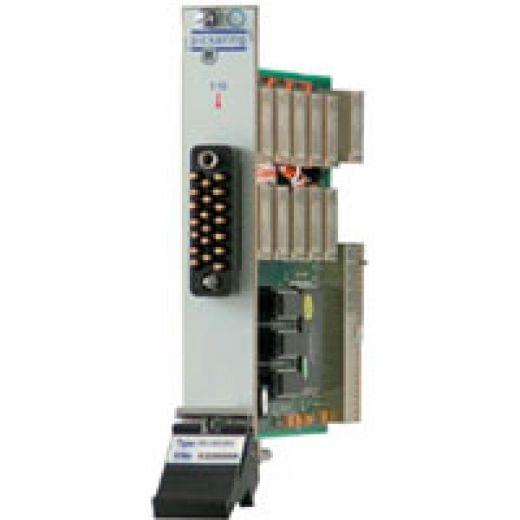

PXI 10 Channel Power Mux 1 Pole - 40-660-001

Model 40-660 is a 10-Channel Power Multiplexer, suitable for switching inductive/capacitive loads up to 10A at 250VAC. It is available with a choice of 1-pole (10A) or 2-pole (8A versions). Model 40-665 is a higher density 18 Channel Power Multiplexer with the same specification as the 40-660. Power Multiplexer Modules are intended for switching heavy AC or DC loads or for slave switching large external relays, contactors and solenoids.

Features
  • 10 Channel Power Multiplexer, 1 or 2-Pole
  • High Density 18-Channel Power Multiplexer, 1-Pole
  • 10A Current Rating (1-Pole Versions)
  • 8A Current Rating (2-Pole Version)
  • Hot Switch to 125VDC/250VAC, Cold Switch to 400VDC/250VAC
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Switch Type EMR
Banks 1
Poles 1
Max I (A) 10
Max V DC 400
Channels 10
Brand Pickering Interfaces
