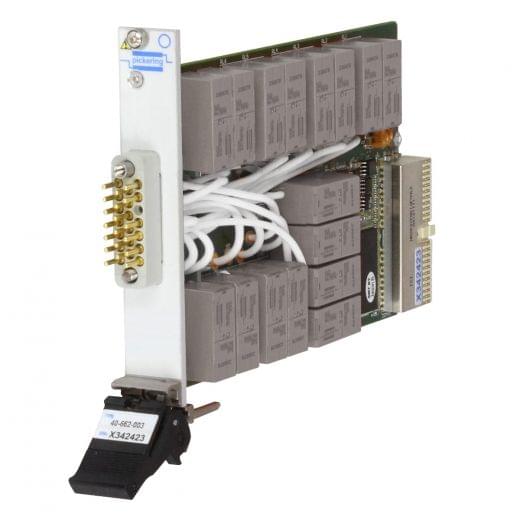

The 40-662 range of 16 Amp PXI power multiplexer modules is available in seven configurations ranging from 4-off 2:1 multiplexers to 1-off 16:1 multiplexer.Power multiplexer modules are intended for switching heavy AC or DC loads or for the slave switching of large external relays, contactors and solenoids. All versions are suitable for switching loads up to 16 Amp at 250VAC. User connections are made via a 20-way GMCT plug which is fully support by our comprehensive range of cables and connector accessories.

Features
  • High Density, High Current Switching
  • Quad 4-Channel 1-Pole, Dual 8-Channel 1-Pole, or Single 16-Channel 1-Pole
  • Partially Populated Versions Also Available
  • 16A Maximum Switch Current
  • Switch up to 300VDC or 250VAC
  • 448W/4000VA Maximum Power
  • 400VDC Standoff Voltage
  • VISA, IVI & Kernel drivers supplied for Windows
  • Supported by PXI or LXI chassis
Platform PXI
Switch Type EMR
Banks 2
Poles 1
Max I (A) 16
Max V DC 400
Channels 8
Brand Pickering Interfaces
