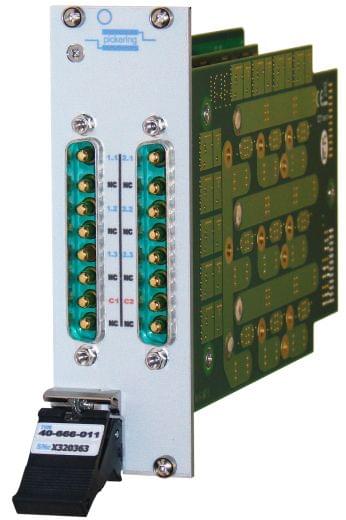

PXI Single 6-Channel 10A Solid State MUX - 40-666-012

The 40-666 is a high current multiplexer available in dual 3-channel or single 6-channel configurations occupying two slots of PXI chassis. Each multiplexer switch uses a fully isolated solid state relay which has been designed to offer fast operation under hot switching conditions and high inrush current with no operational life degradation. Each multiplexer channel can support 10A of continuous current and switch up to 200V signals. The switches can sustain inrush currents in excess of 50A. AC or DC signals can be switched since the switch is polarity insensitive. Note: The 40-666-012 supersedes the 40-666-002 which is functionally the same but with some changes in specification. A data sheet for the 40-666-002 can be found in the 40-666/667 User Manual.

  • Available as a Dual 3-Channel or Single 6-Channel Multiplexer
  • 10 Amp Rating at 200 Volts
  • Single 6-Channel Multiplexer
  • Very High Hot Switch Capacity
  • Very High Inrush Current Rating
  • Fast Operating Speed
  • Long Service Life
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
  • Supported by eBIRST Switching System Test Tools
Platform PXI
Switch Type Solid State
Banks 1
Poles 1
Max I (A) 10
Max V DC 200
Channels 6
Brand Pickering Interfaces
