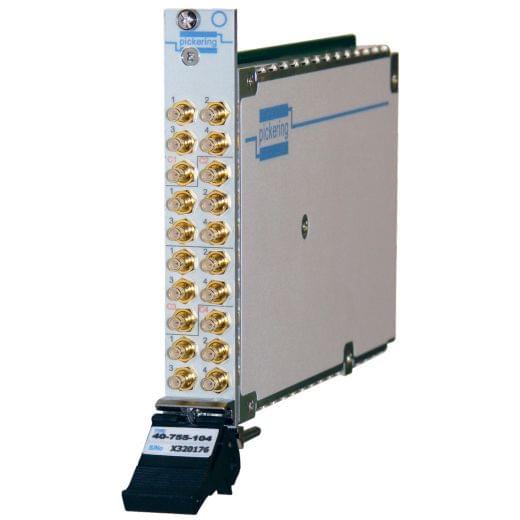

4x 4 to 1,1.8GHz,50Ohm,PXI RF Multiplexer,SMB Connectors, 40-755-104
The 40-75 Ohm is a 50 Ohm high density RF multiplexer (4 to 1) array available with up to 10 MUXs in a single PXI module. The 40-75 Ohm is available with two connector options, an SMB connector that provides a frequency range of 1.8GHz and is available in single or dual PXI slots, or a Souriau multiway connector which limits the bandwidth to 50 OhmMHz but offers a high density solution occupying just one PXI slot. The RF switch design is identical in each case. Need a higher performance, higher BW solution? Try the 40-872 Quad 4 to 1 MUX.
|Frequency Range||DC -1.8GHz|
